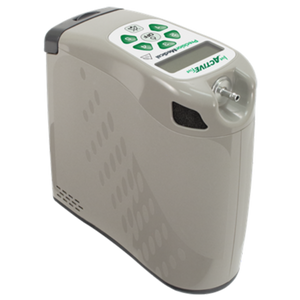

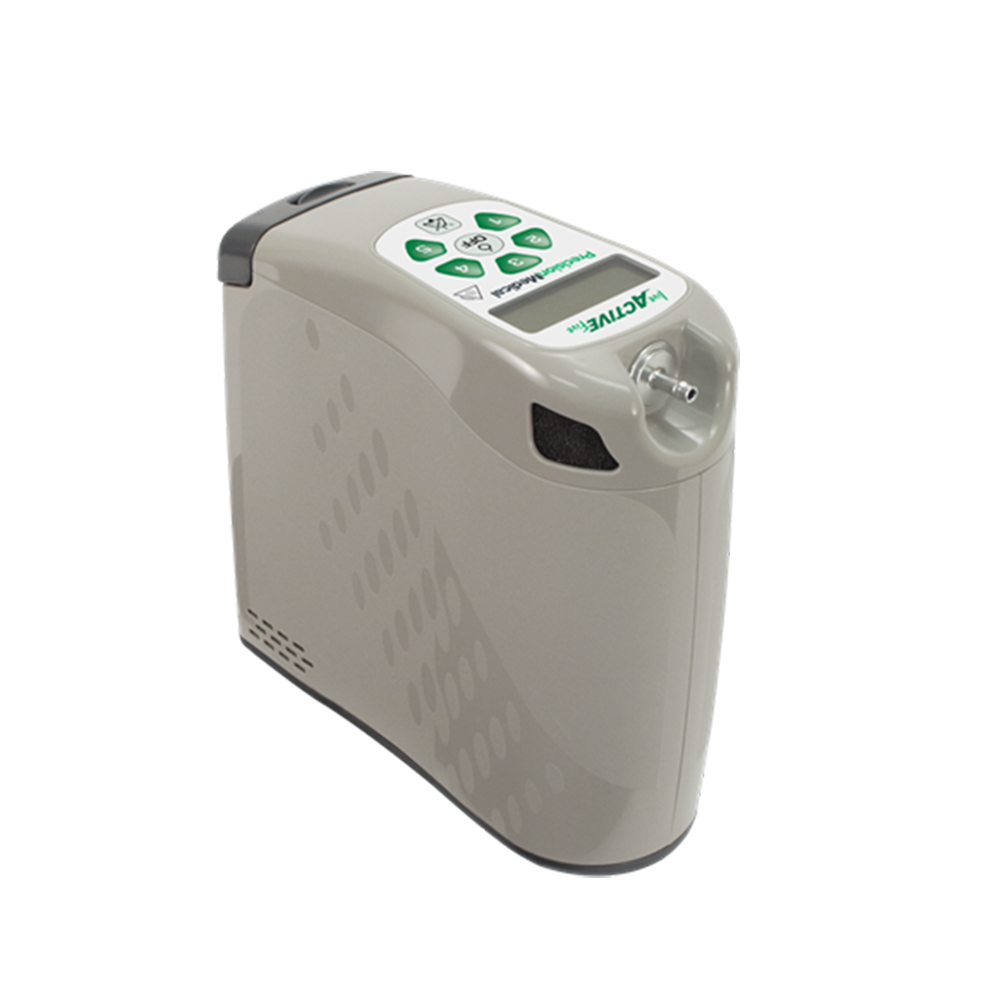

Precision Medical Live Active Five® Portable Oxygen Concentrator

  • S$3,850.00

Live Active Five Portable Oxygen Concentrator is a powerful, lightweight POC designed to give you independence and flexibility. It comes with a custom-designed carry bag that allows you to comfortably wear the device on either side of the body or as a cro

Add to Wish List

Compare this Product

Availability: In Stock

Brand: Precision Medical, Inc.

Product Code: O1PMPOC

Free express delivery (within 1-2 days)

• Flow Rate: 0-3 litres per minute
• Mode: Pulse Mode
• Overall Weight: 2.2 kg




Precision Medical Live Active Five®
Portable Oxygen Concentrator


With 5 flow levels to select from, the versatile portable oxygen concentrator provides pulse-dose oxygen therapy on the go.

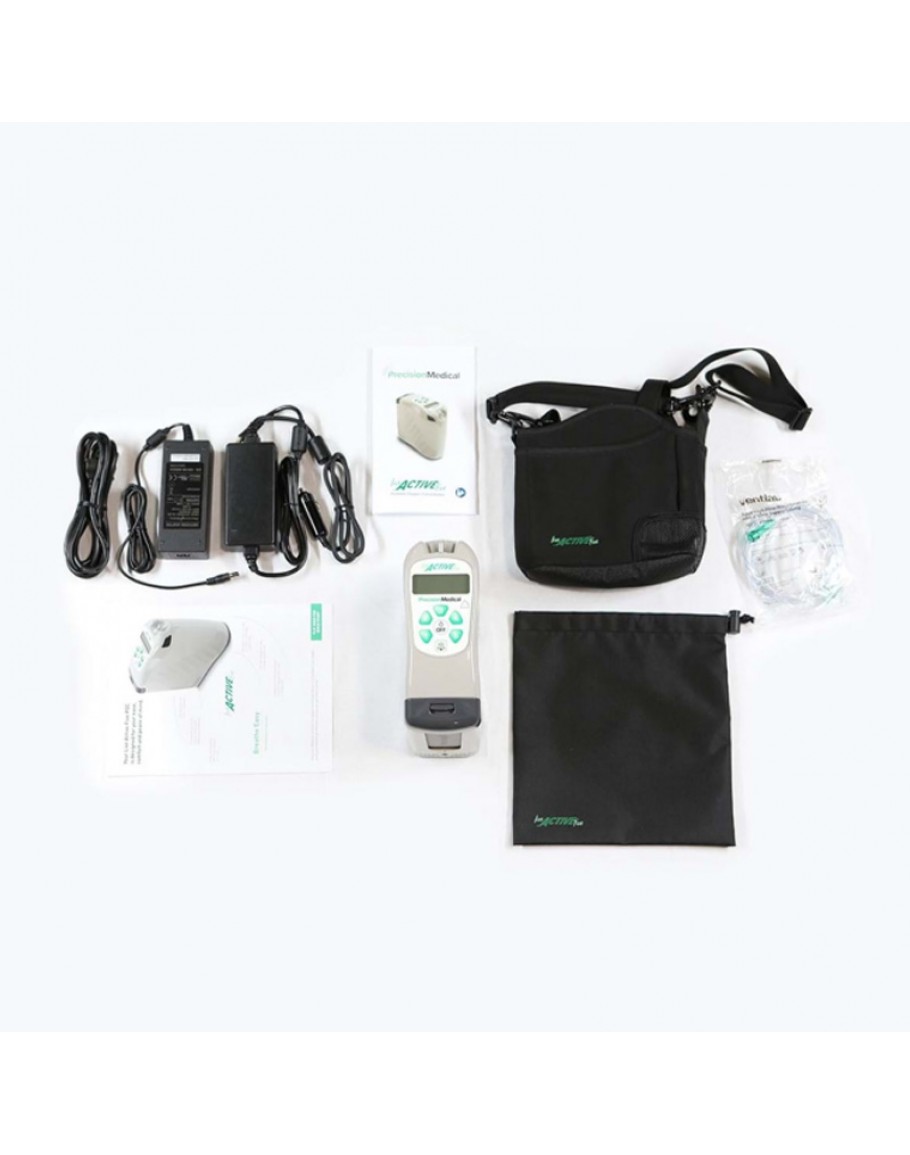

Accessories (Included)

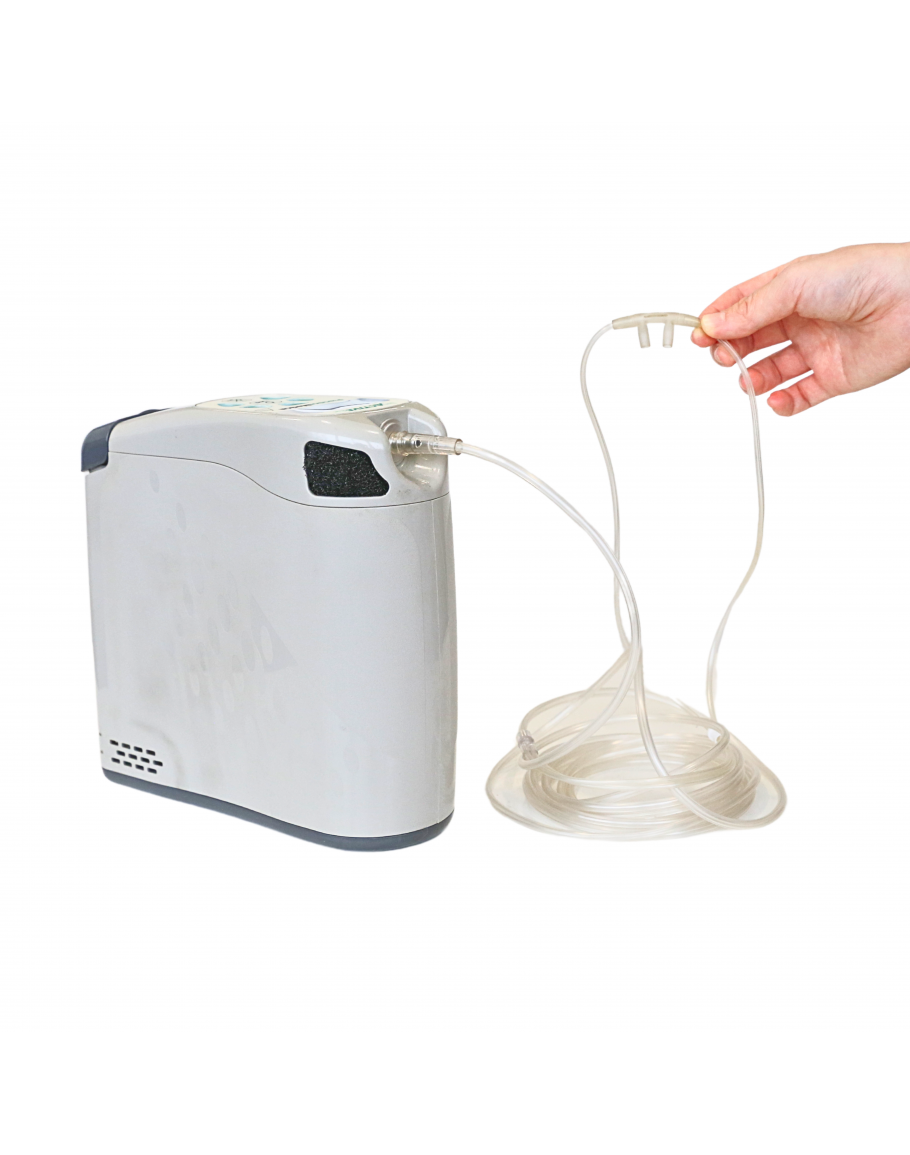

Nasal Cannula

Lithium Ion Battery

Carry Bag with Sling

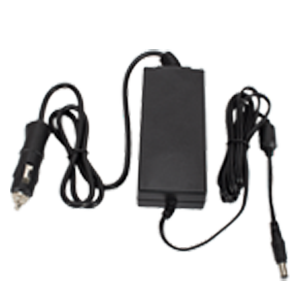

Car Charger

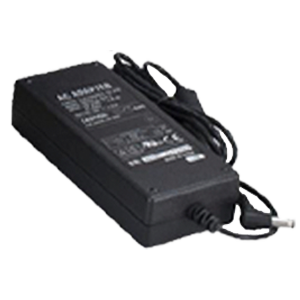

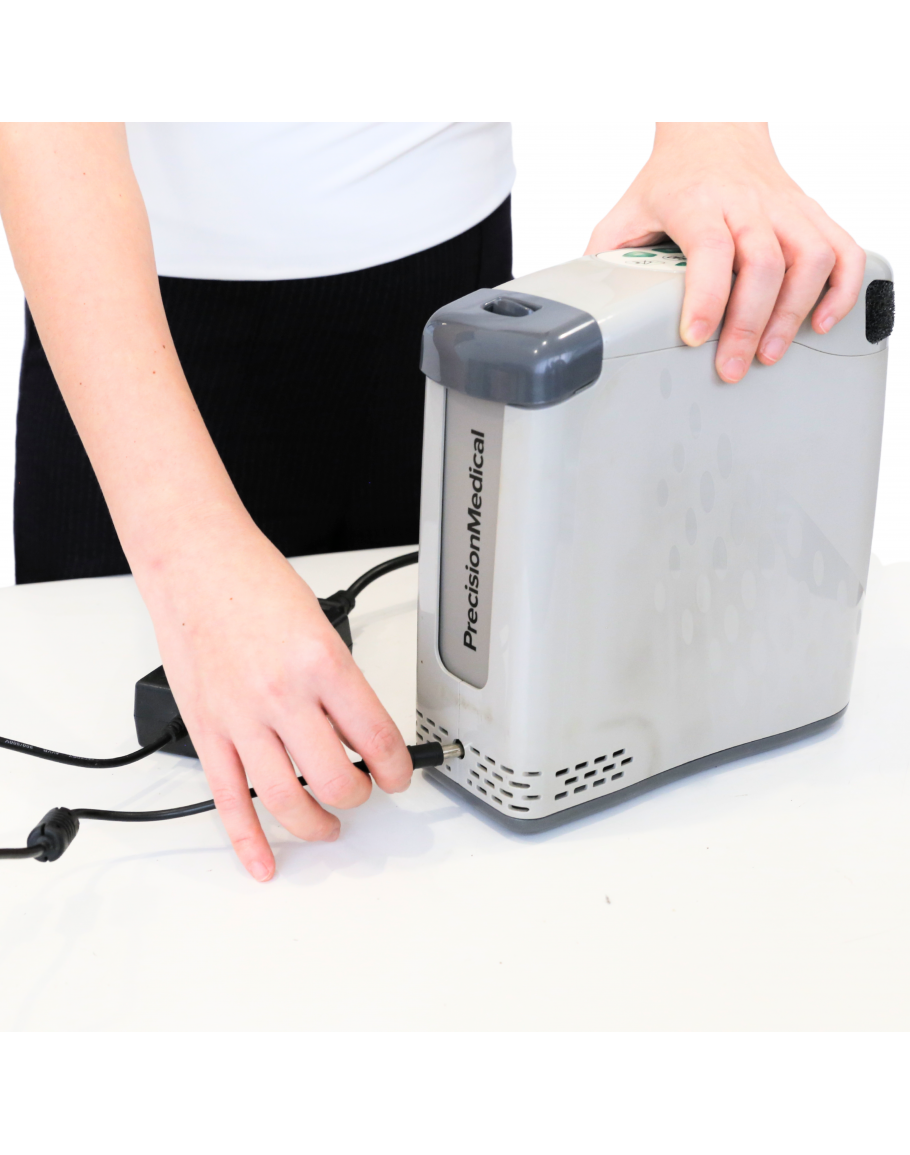

Power Charger


Releases a pulse dose of oxygen when user's breath is detected



One touch button to power on/off machine

5 pulse mode setting.
Up to 1000ml/min (±15%)

Auto delivers pulse oxygen in the
absence of breath

Up to 6.5 hrs
run time

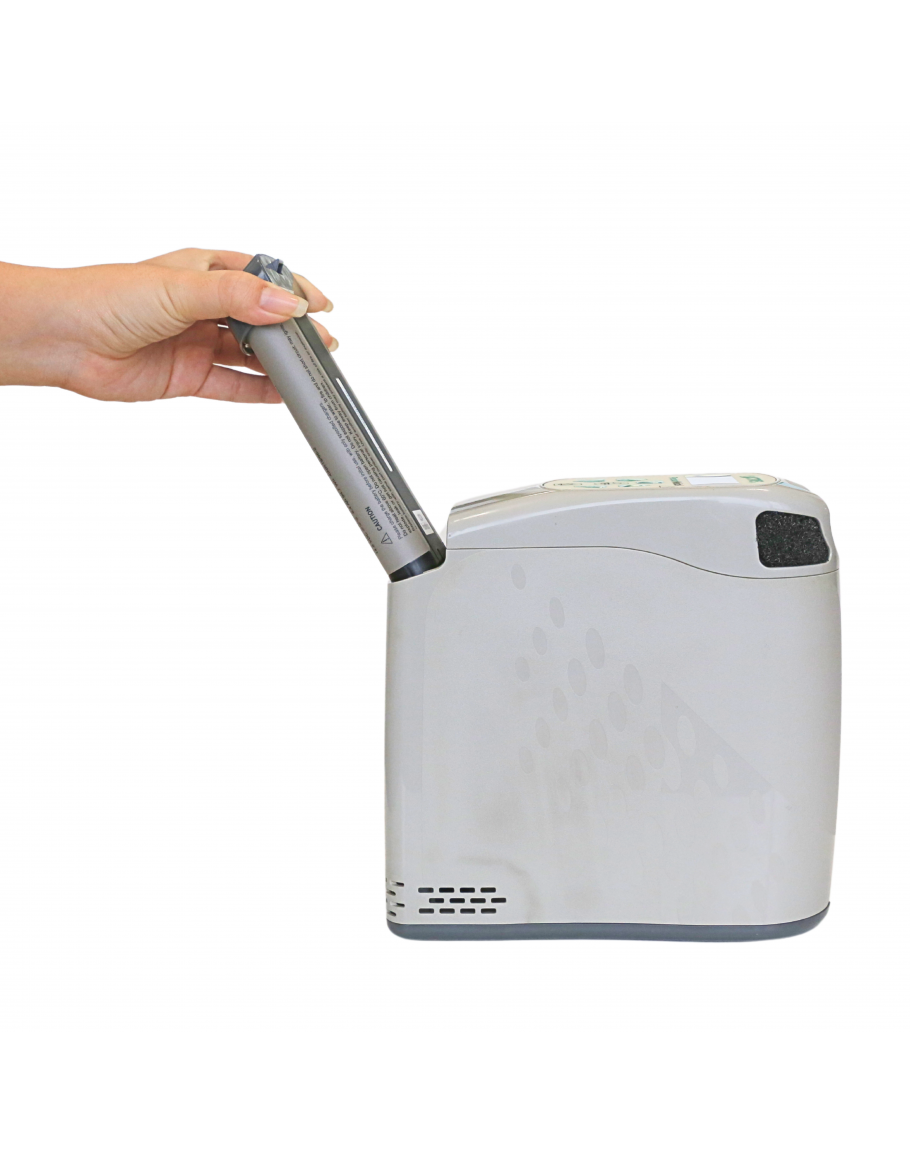

Easy on-the-go
replaceable battery








LCD display

Removable air filter
for easy maintenance

2.2 kg lightweight unit

Alert indicator during abnormal conditions

FAA approved for flight usage.Please seek airline advice for onboard usage






Precision Medical : Live Active Five

Portable Oxygen Concentrator



Mode : Pulse Mode Only

Oxygen Flow Volume
• Setting 1 : 220 ±15% ml/min
• Setting 2 : 440 ±15% ml/min
• Setting 3 : 660 ±15% ml/min
• Setting 4 : 880 ±15% ml/min
• Setting 5 : 1000 ±15% ml/min

Battery Duration
• Setting 1: ± 6.5 hrs
• Setting 2: ± 4.3 hrs
• Setting 3: ± 2.7 hrs
• Setting 4: ± 2.0 hrs
• Setting 5: ± 1.5 hrs

Precision Medical Live Active Five

Portable Oxygen Concentrator

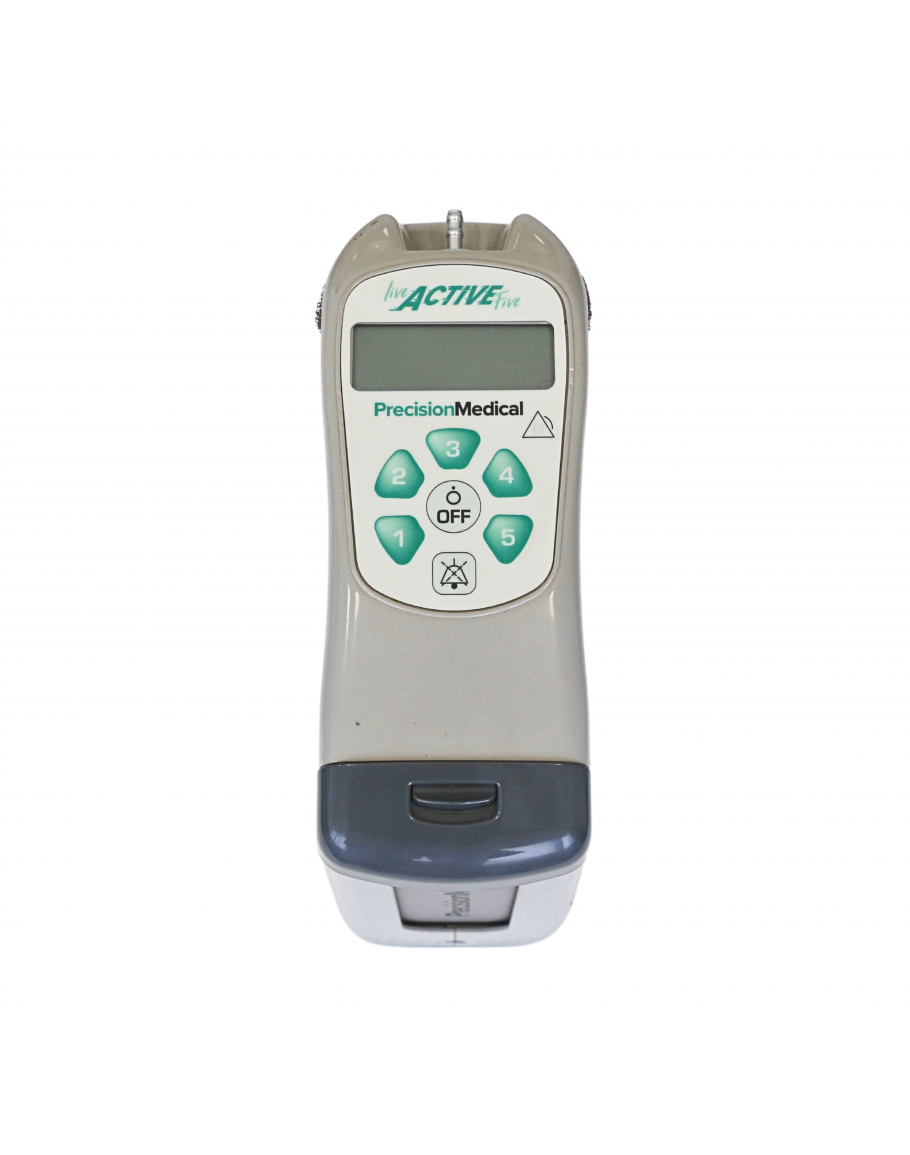

Pulse Selection Buttons

Press the designated pulse setting number (1-5) to activate the device; a beep and lit indicators confirm proper function

Oxygen Outlet Fitting

Connect the end of a oxygen nasal cannula with a maximum length of 7 feet (2.1 m) to the POC’s oxygen outlet fitting

Air Inlet with Filter

After removing, wash the filter with mild detergent, rinse thoroughly, and let it dry completely before placing it back into the case


Downloads

Frequently Asked Questions

As opposed to home oxygen concentrators, the precision live active five operates on pulse dose oxygen flow.
This means that the machine releases a dosage of oxygen whenever it detects breathing through the nose. The machine is best used with a nasal cannula.
Product Specifications
Overall Length 21.6 cm / 8.5 "
Overall Width 8.3 cm / 3.2 "
Overall Height 21.4 " / 8.4 "
Mode of Delivery Pulse Mode Only
Oxygen Flow Volume
Setting 1:
220 ± 15 % ml/min

Setting 2:

440 ± 15 % ml/min

Setting 3:

660 ± 15 % ml/min

Setting 4:

880 ±1 5 % ml/min

Setting 5:

1000 ± 15 % ml/min

*For users that require low flows (up to 3 LPM) and are not dependent on oxygen support. Portable units unlike home units are different in terms of the mode of delivery.

Oxygen Concentration 87 - 95.5 %
Maximum Outlet Pressure 12.0 psi
Noise Level 40 dBA
Type of Battery Lithium-Ion
Battery Duration
Setting 1: 6.5 hrs ±

Setting 2:

4.3 hrs ±

Setting 3:

2.7 hrs ±

Setting 4:

2.0 hrs ±

Setting 5:

1.5 hrs ±
Battery Recharge Time Approximately 3.5 Hours
Electrical Requirements 100 - 240 Volt
Frequency 50 - 60 Hz
Operating Environment
Temperature Range:
41 - 104 °F

5 - 40 °C



Altitude Range: Sea Level to 10,000 ft
3,048 m
Overall Weight 2.2 kg
Country Of Origin Made in USA
Warranty 1 Year Carry In Warranty (Motor Only)
