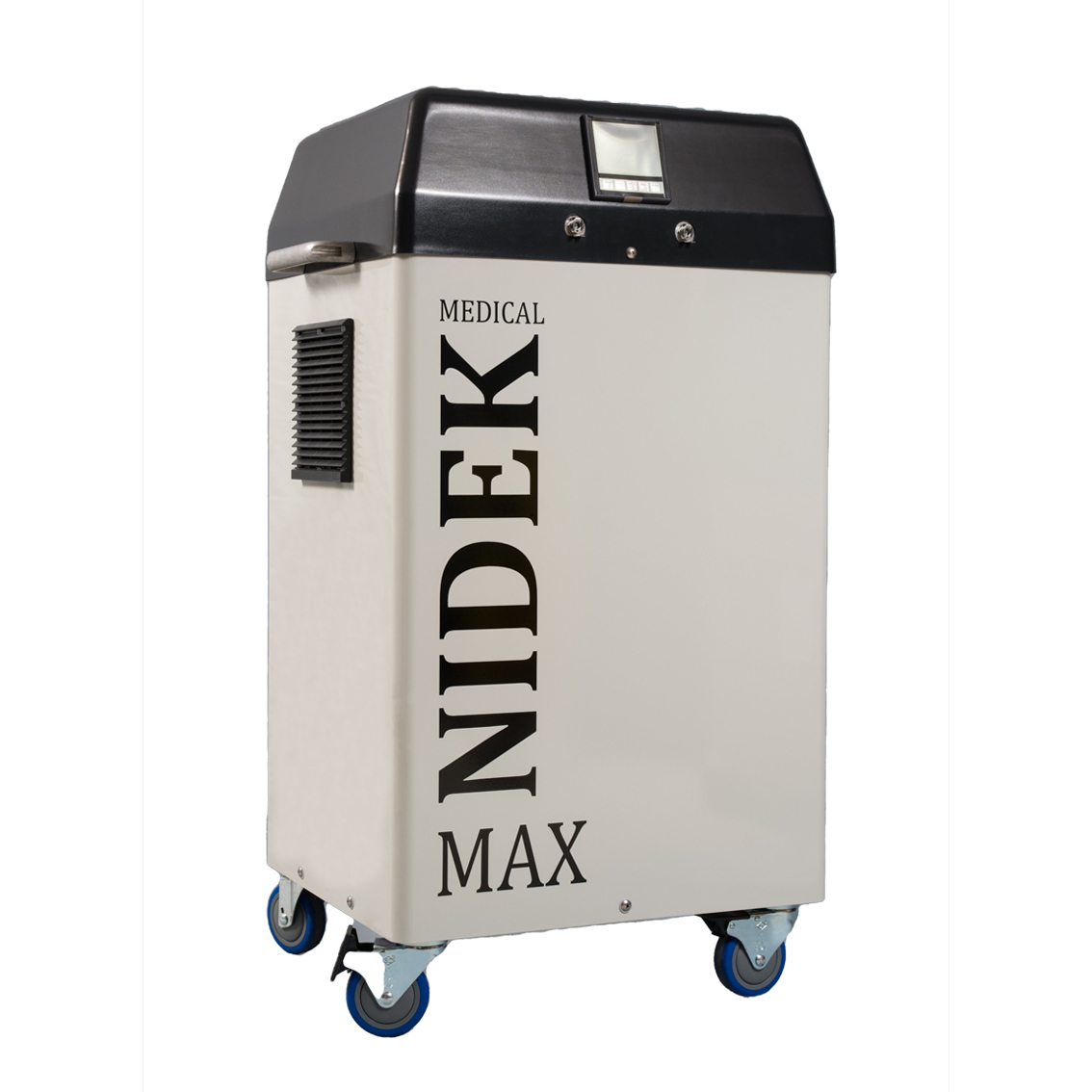

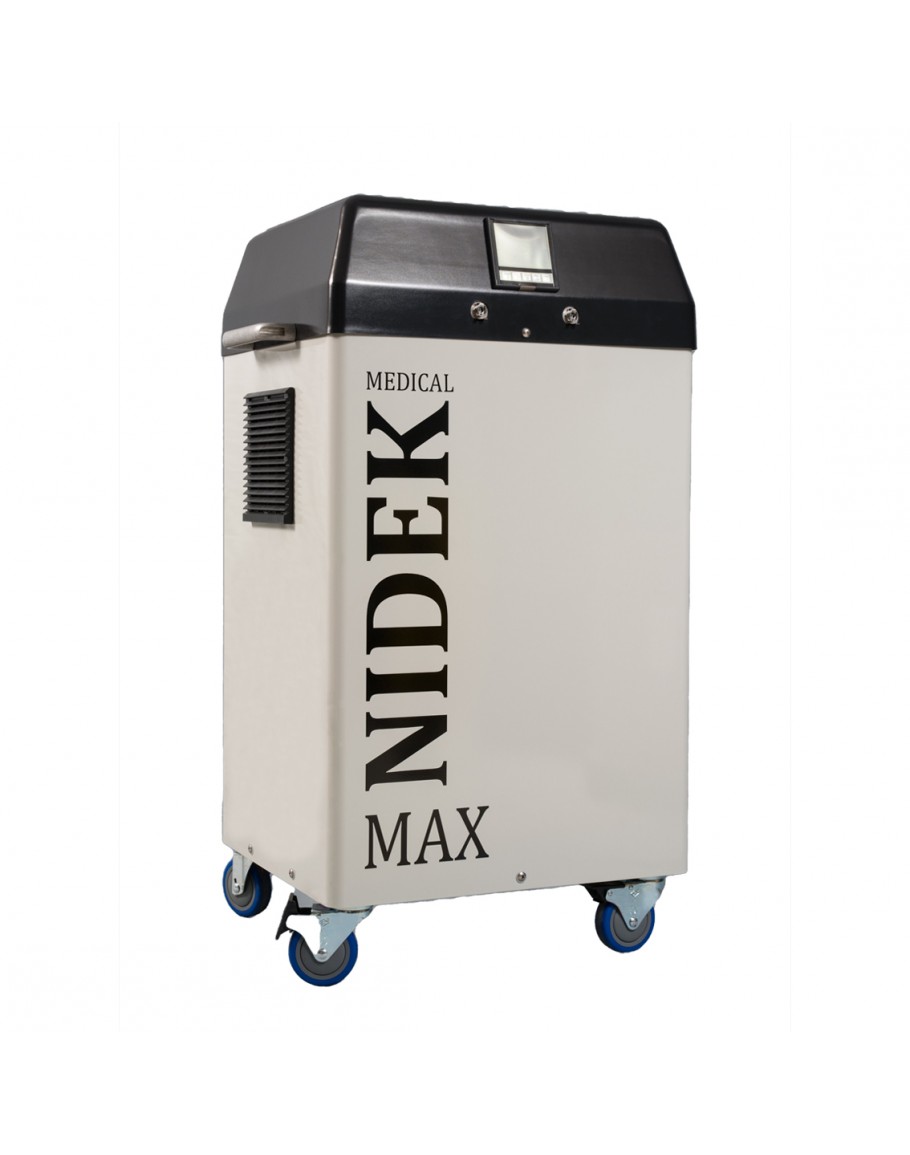

Nidek Max 30 Oxygen Concentrator

  • S$32,000.00

Ideally for Vets, Labs and Clinics. The Nidek Max 30 Oxygen Concentrator provides up to 30 litres of oxygen per minute. It can be used as a cylinder filing or be connected to a anesthesia machine and ventilators.

Add to Wish List

Compare this Product

Availability: In Stock

Brand: Nidek Medical, Inc.

Product Code: O1N3005

Free express delivery (within 1-2 days)

• Flow Rate: 0-30 litres per minute
• Mode: Continuous Flow
• Overall Weight: 91 kg


Features

The Max 30 provides up to 30 liters of oxygen per minute and is ideal for small hospitals, laboratories and veterinary clinics. It can also be used as a cylinder filling station or connected to anesthesia machines and ventilators. It is built on a reliable modular platform with a superior grade of molecular sieve.

Easy to use

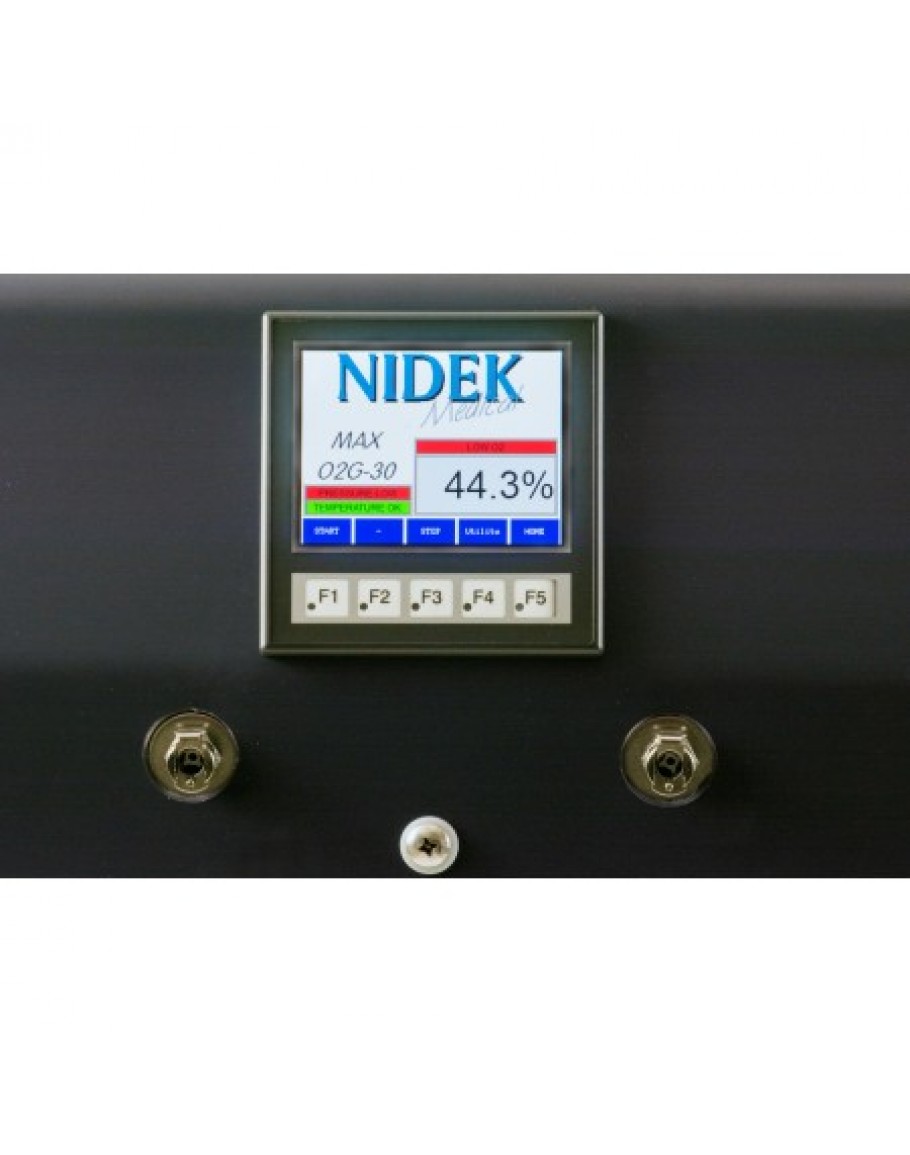

Just connect to an electrical outlet, turn the Master Switch ON/OFF power switch to the ON position and press the START button on the front display panel and set the desired flow rate.

Dependable

Its internal air compressors, filtration system, molecular sieve, storage tanks and flow control system are designed for 24/7 operation.

Durable

With oxygen-clean brass tubing and valves, the MAX 30 can operate even in environments as described under the specifications page.

Safe

A built-in oxygen pressure regulator maintains oxygen outlet pressure at 50 psi (3.4 bar). Each of the compressors on the MAX 30 has 0.38 hp and have a built-in safety relief valve to prevent excessive pressures in each compressor.



Country of Origin

Made in USA

Delivery

Please allow 6 to 8 weeks for delivery.



Product Specifications
Overall Length 61 cm / 24"
Overall Width 51 cm / 20.1"
Overall Height 116 cm / 45.7"
Oxygen Flow Volume 2  - 30 Liter Per Minute (LPM)
Oxygen Concentration 93 % (+ / - 3 %) at 30 LPM
Pressure 50 psi (3.4 bar)
Noise Level 60 dBA
Type of Filter Cabinet & Compressor Intake
Power Consumption
230 Volt AC

50 / 60 Hz

Single Phase, 11 A
Electrical Requirements 230 Volt
Operating Environment
Ambient Temperature:
50 - 100 °F

10 - 40 °C



Humidity: 15 - 95 %
Non-Condensing
Storage
Ambient Temperature:
0 - 140 °F

- 20 - 60 °C



Humidity: 15 - 95 %
Non-Condensing
Safety Features
Power Failure

Process Failure

High Pressure / Low Pressure

Current Overload or Line Surge Shutdown

Thermal Switch

40 PSIG Pressure Relief Valve

Low Battery Test
Overall Weight 91 kg
Country Of Origin Made in USA
